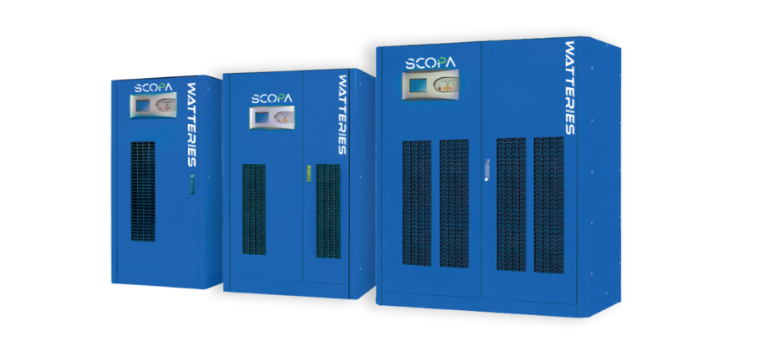

Watteries Scopa UPS Detayları
DSP Güç Faktörü Düzeltmeli IGBT Doğrultucu
Yeni IGBT doğrultucusuyla donatılan SCOPA Serisi, kritik yüklerinizi korurken, yerden tasarruf sağlayan kompakt tasarımı ve bakım için önden erişim özelliğiyle ortalama onarım süresini (MTTR) başarıyla azaltır.
SCOPA Serisi geniş aksesuar ve opsiyon çeşitliliği sayesinde kullanıcılara maksimum esneklik avantajı sunarken, toplam sahip olma maliyetini de optimize ediyor.
SCOPA 10-120 kVA
| MODEL | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA |
| Power Watt | 9kW | 13.5kW | 18kW | 27kW | 36kW | 54kW | 72kW | 90kW | 108kW |
| INPUT | |
|---|---|
| Naminal Voltage | 380/400/415 VAC 3 P+N (Opsiyonel 220/380 VAC -%37 +%22 3 P+N+PE) |
| Voltage tolerance | -%20 +%15 |
| Frequency Tolerance | 50 / 60 Hz ±%10 (Selectable) |
| Power Factor | 0.99 |
| THD (THDv) | 3% |
| Output | |
|---|---|
| Power Factor | 0.9 |
| Nominal Voltage | 380/400/415 VAC 3 Phase + N |
| Efficiency [Online Mode] | Up to 92% |
| Efficiency [Eco Mode] | Up to 99% |
| Frequency Tolerance | 50Hz / 60Hz ±0,01% (Battery Mode) |
| Output THD | Linear Load < 1% Non-Linear Load < 3% |
| Crest Factor (CF) | 3:1 |
| Overload Capacity* | At 125% Load 10min, at 150% Load 1min |
| WEIGHT, DIMENSIONS | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA |
|---|---|---|---|---|---|---|---|---|---|
| Cabinet Dimensions (mm) Width | 490 | 490 | 490 | 490 | 490 | 490 | 530 | 530 | 530 |
| Cabinet Dimensions (mm) Depth | 805 | 805 | 805 | 805 | 805 | 805 | 780 | 780 | 780 |
| Cabinet Dimensions (mm) Height | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 | 1290 | 1290 | 1290 |
| Net Weight (kg) | 125 | 126 | 131 | 145 | 173 | 323 | 222 | 231 | 240 |
| Packaging Dimensions (mm) Width | 600 | 600 | 600 | 600 | 600 | 600 | 650 | 650 | 650 |
| Packaging Dimensions (mm) Depth | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Packaging Dimensions (mm) Height | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Net Weight (kg) | 145 | 146 | 151 | 166 | 193 | 353 | 253 | 261 | 270 |
SCOPA 160-1000 kVA
| MODEL | 160kVA | 200kVA | 250kVA | 300kVA | 400kVA | 500kVA | 600kVA | 800kVA | 1000kVA |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 160kVA | 200kVA | 250kVA | 300kVA | 400kVA | 500kVA | 600kVA | 800kVA | 1000kVA |
| Power Watt | 144kW | 180kW | 225kW | 270kW | 360kW | 450kW | 540kW | 720kW | 900kW |
| INPUT | |
|---|---|
| Naminal Voltage | 380/400/415 VAC 3 P+N (Optional 220/380 VAC -37% +22% 3 P+N+PE) |
| Voltage tolerance | -20% +15% |
| Frequency Tolerance | 50 / 60 Hz ±10% (Selectable) |
| Power Factor | >0.99 |
| THD (THDv) | <3% |
| OUTPUT | |
|---|---|
| Power Factor | 0.9 (1 Optional) |
| Nominal Voltage | 380/400/415 VAC 3 P+N |
| Efficiency [Online Mode] | Up to 96% |
| Efficiency [Eco Mode] | Up to 99% |
| Frequency Tolerance | 50 / 60 Hz ±0,01% (Battery Mode) |
| Output THD | Linear Load <1% / Non-Linear Load <3% |
| Crest Factor (CF) | 3:1 |
| Overload Capacity* | At 125% Load 10min, At 150% Load 1min |
| WEIGHT, DIMENSIONS | 160kVA | 20kVA | 250kVA | 300kVA | 400kVA | 500kVA | 500kVA | 800kVA | 1000kVA |
|---|---|---|---|---|---|---|---|---|---|
| Cabinet Dimensions (mm) Width | 830 | 830 | 830 | 1200 | 1200 | 1200 | 2000 | 2000 | 2000 |
| Cabinet Dimensions (mm) Depth | 870 | 870 | 870 | 825 | 825 | 825 | 870 | 870 | 870 |
| Cabinet Dimensions (mm) Height | 1800 | 1800 | 1800 | 1854 | 1854 | 1854 | 2050 | 2050 | 2050 |
| Net Weight (kg) | 475 | 490 | 553 | 830 | 840 | 850 | 1510 | 1510 | 1510 |
| Packaging Dimensions (mm) Width | 900 | 900 | 900 | 1370 | 1370 | 1370 | 2100 | 2100 | 2100 |
| Packaging Dimensions (mm) Depth | 970 | 970 | 970 | 845 | 845 | 845 | 950 | 950 | 950 |
| Packaging Dimensions (mm) Height | 2040 | 2040 | 2040 | 2040 | 2040 | 2040 | 2250 | 2250 | 2250 |
| Net Weight (kg) | 505 | 520 | 583 | 870 | 880 | 890 | 1590 | 1590 | 1590 |
