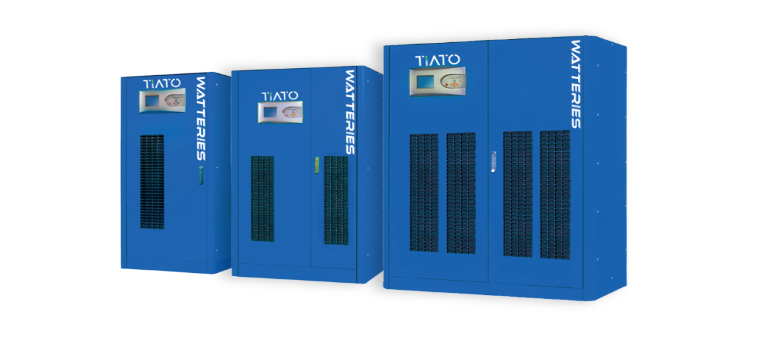

Watteries Tiato UPS Detayları
Yenilikçi 3 Seviye Teknolojisi
Yenilikçi 3 Seviye Teknolojisine sahip Tiato Serisi, sektördeki en yüksek enerji verimliliklerinden birini sağlayan gerçek bir çevrimiçi çift dönüşümlü, üç fazlı UPS sistemidir.
Üç seviyeli invertör ve doğrultucu tasarımına sahip Tiato Serisi, en yeni güç dönüşüm teknolojisini kullanarak en yaygın çalışma aralığı olan %50-75 yükte %96'ya varan verimlilik sağlıyor.
TIATO 10-120 kVA
| MODEL | 10kVA | 15kVA | 20kVA | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA | 80kVA | 100kVA | 120kVA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 10kVA | 15kVA | 20kVA | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA | 80kVA | 100kVA | 120kVA |
| Power Watt | 9kW | 13.5kW | 18kW | 9kW | 13.5kW | 18kW | 27kW | 36kW | 54kW | 72kW | 90kW | 108kW | 72kW | 90kW | 108kW |
| INPUT | |
|---|---|
| Naminal Voltage | 380/400/415 VAC 3 P+N (Opsiyonel 220/380 VAC -%37 +%22 3 P+N+PE) |
| Voltage tolerance | -%20 +%15 |
| Frequency Tolerance | 50 / 60 Hz ±%10 (Selectable) |
| Power Factor | 0.99 |
| THD (THDv) | 3% |
| Output | |
|---|---|
| Power Factor | 0.9 [1 Optional] |
| Nominal Voltage | 380/400/415 VAC 3 P + N |
| Efficiency [Online Mode] | Up to 96% |
| Efficiency [Eco Mode] | Up to 99% |
| Frequency Tolerance | 50Hz / 60Hz ±0,01% (Battery Mode) |
| Output THD | Linear Load < 1% Non-Linear Load < 3% |
| Crest Factor (CF) | 3:1 |
| Overload Capacity* | At 125% Load 10min, at 150% Load 1min |
| WEIGHT, DIMENSIONS | 10kVA | 15kVA | 20kVA | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | 60kVA | 80kVA | 100kVA | 120kVA | 80kVA | 100kVA | 120kVA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cabinet Dimensions (mm) Width | 370 | 370 | 370 | 490 | 490 | 490 | 490 | 490 | 490 | 530 | 530 | 530 | 763 | 810 | 810 |
| Cabinet Dimensions (mm) Depth | 660 | 660 | 660 | 805 | 805 | 805 | 805 | 805 | 805 | 780 | 780 | 780 | 771 | 820 | 820 |
| Cabinet Dimensions (mm) Height | 850 | 850 | 850 | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 | 1290 | 1290 | 1290 | 1555 | 1705 | 1705 |
| Net Weight (kg) | 85 | 85 | 85 | 125 | 126 | 131 | 145 | 173 | 323 | 331 | 353 | 368 | |||
| Packaging Dimensions (mm) Width | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 600 | 600 | 650 | 650 | 650 | 900 | 900 | 900 |
| Packaging Dimensions (mm) Depth | 760 | 760 | 760 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 970 | 970 | 970 |
| Packaging Dimensions (mm) Height | 1000 | 1000 | 1000 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 2040 | 2040 | 2040 |
| Net Weight (kg) | 105 | 105 | 105 | 145 | 146 | 151 | 166 | 193 | 353 | 361 | 383 | 398 |
TIATO 160-1000 kVA
| MODEL | 160kVA | 200kVA | 250kVA | 300kVA | 400kVA | 500kVA | 600kVA | 800kVA | 1000kVA |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 160kVA | 200kVA | 250kVA | 300kVA | 400kVA | 500kVA | 600kVA | 800kVA | 1000kVA |
| Power Watt | 144kW | 180kW | 225kW | 270kW | 360kW | 450kW | 540kW | 720kW | 900kW |
| INPUT | |
|---|---|
| Naminal Voltage | 380/400/415 VAC 3 P+N (Optional 220/380 VAC -37% +22% 3 P+N+PE) |
| Voltage tolerance | -20% +15% |
| Frequency Tolerance | 50 / 60 Hz ±10% (Selectable) |
| Power Factor | >0.99 |
| THD (THDv) | <3% |
| OUTPUT | |
|---|---|
| Power Factor | 0.9 (1 Optional) |
| Nominal Voltage | 380/400/415 VAC 3 P+N |
| Efficiency [Online Mode] | Up to 96% |
| Efficiency [Eco Mode] | Up to 99% |
| Frequency Tolerance | 50 / 60 Hz ±0,01% (Battery Mode) |
| Output THD | Linear Load <1% / Non-Linear Load <3% |
| Crest Factor (CF) | 3:1 |
| Overload Capacity* | At 125% Load 10min, At 150% Load 1min |
| WEIGHT, DIMENSIONS | 160kVA | 20kVA | 250kVA | 300kVA | 400kVA | 500kVA | 500kVA | 800kVA | 1000kVA |
|---|---|---|---|---|---|---|---|---|---|
| Cabinet Dimensions (mm) Width | 830 | 830 | 830 | 1200 | 1200 | 1200 | 2000 | 2000 | 2000 |
| Cabinet Dimensions (mm) Depth | 870 | 870 | 870 | 825 | 825 | 825 | 870 | 870 | 870 |
| Cabinet Dimensions (mm) Height | 1800 | 1800 | 1800 | 1854 | 1854 | 1854 | 2050 | 2050 | 2050 |
| Net Weight (kg) | 475 | 490 | 553 | 830 | 840 | 850 | 1510 | 1740 | 1740 |
| Packaging Dimensions (mm) Width | 900 | 900 | 900 | 1370 | 1370 | 1370 | 2100 | 2100 | 2100 |
| Packaging Dimensions (mm) Depth | 970 | 970 | 970 | 845 | 845 | 845 | 950 | 950 | 950 |
| Packaging Dimensions (mm) Height | 2040 | 2040 | 2040 | 2040 | 2040 | 2040 | 2250 | 2250 | 2250 |
| Net Weight (kg) | 505 | 520 | 583 | 870 | 880 | 890 | 1590 | 1820 | 1820 |
