UPS Details
Description
FusionPower6000 integrates full-power links from the medium-voltage transformer to the load feeder, to provide MW-level integrated power supply and distribution for large data centers. The integrated design and high-density components are integrated to reduce the footprint. Prefabrication and de-engineering shorten the deployment duration. iPower intelligent feature ensuring system security.

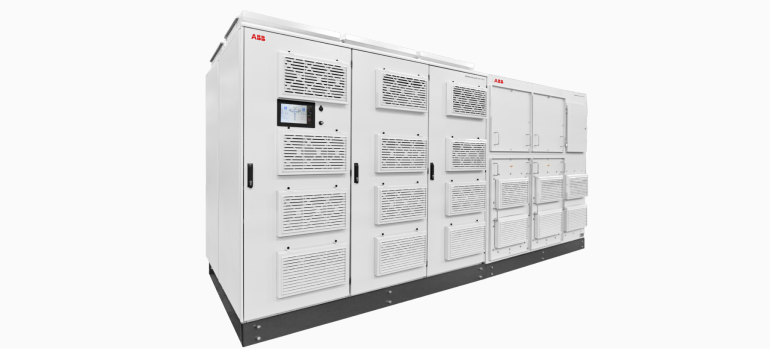

To ensure critical facilities are highly efficient, reliable and secure, it is paramount that end-users collaborate with the right technology partners. HiPerGuard is designed with long term system availability in mind and only requires intrusive maintenance in ten-year intervals, delivering time and cost savings for maintenance teams.
HiPerGuard delivers the highest levels of efficiency available on the market, at 98 percent – translating to a potential carbon emission reduction of 1,360 tonnes over a 15-year lifespan.
| Product Class | 7.2 kV IEC | 12 kV IEC | 15 kV ANSI | 24 kV IEC | |
|---|---|---|---|---|---|
| Rated Voltage | 6-6.6 kV | 10 – 11 kV | 12.47 – 13.8 kV | 20 – 22 kV | |
| Rated apparent power | 2500 kVA | 2500 kVA | 2500 kVA | 2500 kVA | Single unit |
| Rated active power | 2500 kW | 2500 kW | 2500 kW | 2500 kW | Load power factor 1.0 |
| Hard parallel configuration | Up to 10 units | Up to 10 units | Up to 10 units | Up to 10 units |
| Performance | ||
|---|---|---|
| Efficiency | 98% for 50% to 100% loading | Under nominal conditions | Dynamic output performance | In line with IEC62040-3 VI SS 111 |
| Architecture | ZISC enabled line interactive |
| Input | ||
|---|---|---|
| Voltage tolerance | ±10 % | From nominal voltage | Rated frequency | 50 Hz/60 Hz |
| Power Distribution system | IT, 3-Wire Input |
| Output | |
|---|---|
| Rated frequency | 50 Hz or 60 Hz | Load power factor range | 0.9 leading to 0.8 lagging |
| Energy Storage | |
|---|---|
| Energy storage type | Li-Ion batteries | Energy storage supplier | ABB recommended | Energy storage autonomy range | 15 sec to 15 min |
| Interface | |
|---|---|
| System display | 10" touchscreen display | Display advanced functionality | Comprehensive service log | Communication | Ethernet Modbus TCP™ |
Features
- Scalable power from 2.5 MW up to 25MW in parallel allows load growth with less stranded capacity, minimising CAPEX.
- Of energy savings for fifteen years when compared to rotary systems. Leading efficiency for line-interactive UPS.
- System energy reserve available for grid support services or peak shaving.
- Intervals between intrusive maintenance. ABB’s Ability™ real-time monitoring for maximum uptime.
- IEC 62040.3 Class 1 load protection providing load isolation from the network with sub-cycle response load conditioning.
- CO2 emissions are reduced by 1,360 tonnes throughout the lifespan of the product.
