UPS Details

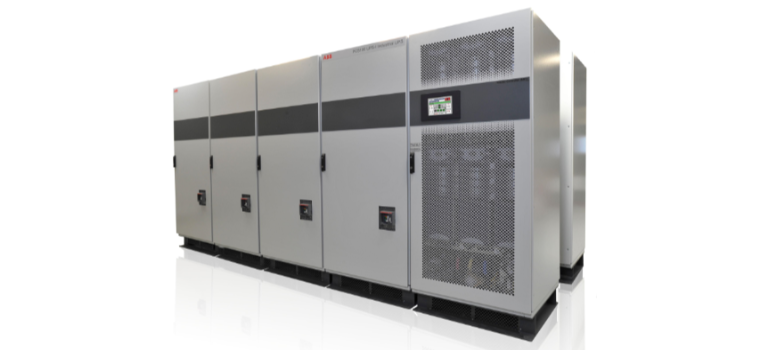

PCS100 UPS-I
Designed for commercial and industrial applications, ABB’s PCS100 industrial UPS has power ratings from 150 kVA to 3 MVA.
Designed for industry
The ABB PCS100 UPS-I is a high performance, high efficiency UPS system that ensures protection from power quality events, enabling continuous power supply to modern industrial processes. Designed for industrial applications (tooling, machinery, robotics, drives and motors), ABB’s PCS100 Industrial UPS provides a seamless power supply, eliminating downtime.
Protection from power quality events
Voltage sags, surges and short outages are common events that often cause electric and electronic equipment to malfunction. When such events occur in critical control operations, they can cause the complete shutdown of a facility. The PCS100 UPS-I is designed to solve these problems. It is a robust single conversion UPS and is used to protect sensitive loads from sags, surges and outages using ultracapacitor or battery energy storage. A lower total cost of ownership than alternative solutions, makes the PCS100 UPS-I a high performance, high efficient UPS system.
Robust with high availability
Harsh electrical environments are often found in modern industry. The modular inverter construction and fail-safe electro-mechanical bypass enable the PCS100 UPS-I to provide the highest system availability. Coupled with the small footprint and easy serviceability, this low maintenance, high efficiency industrial UPS is the solution for all power protection applications.
| Input | |
|---|---|
| Rated Supply Voltage (according to model) | 400/230 VAC, others on request |
| Voltage range | Loads < 100% (−15%, +10%), < 80% (−20%, +10%), < 60% (−25%, +10%) |
| Frequency range | 35-70 Hz |
| Current THD at 100% load | <4% |
| Power factor at 100% load | 0.99 |
| Output | |
|---|---|
| Rated output voltage (load dependent) | 400/230 VAC (3ph); 230 VAC (1ph) |
| Voltage variation | < 2% |
| Rated frequency | 50 or 60Hz (selectable) |
Key benefits
- Robust fail-safe modular industrial design .
- Long lifetime energy storage.
- Small footprint.
- Highest efficiency and availability .
- Low maintenance requirements.
- Easy serviceability.
Key features
- Very high efficiency (99% typical).
- Designed specifically for industrial loads (motors, drives, transformers, production tools).
- Modular design providing high reliability and typically 30 minutes MTTR (mean time to repair).
- Very high fault current capacity.
- Advanced ultracapacitor or high discharge rate battery storage.
- Generator walk-in algorithm for a controlled transfer of the load to backup generators.
- Ratings from 150 kVA to 3000 kVA and voltages.
- 208 Vac to 480 Vac.
