CONTAINERIZED ENERGY STORAGE

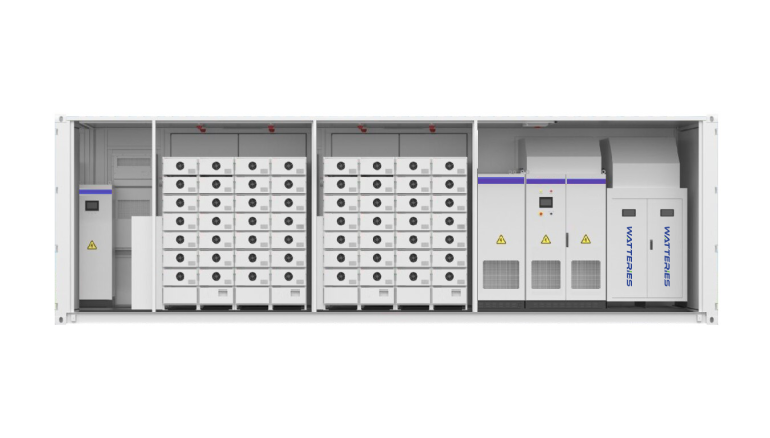

Watteries all-in-one containerized energy storage systems in a range of sizes are designed as Plug and Play solutions that are pre-configured, commissioned and tested. This results in minimal impact on site and virtually instant operation. While WATTERIES offers a range of standard solutions, our battery energy storage systems can be designed to your specific needs. Our containerized solutions are configured with batteries, a power conversion system, HVAC, an intelligent controller and all relevant safety equipment including fire suppression and a 3-level battery management system.
| PERFORMANCE | |
|---|---|
| Cell technology | LFP-320Ah |
| Battery pack configuration | 1P52S |
| Battery cluster configuration | 1P416S(8 pcs PACK) |
| System configuration | 12 * 1P416S |
| Rated power | 5.11MWh |
| Rated voltage | 1331.2V |
| Battery voltage range | 1164.8V ~ 1497.6V |
| Battery system charge/discharge rate | 0.5P |
| AC SIDE PARAMETERES(OPTIONAL) | |
|---|---|
| Rated output power | 1.25MW x 2 |
| Rated grid voltage | 690, 3W+PE |
| Maximum output current | 1151A x 2 |
| Allowable grid voltage range | 586.5V - 759V (Settable) |
| Rated grid frequency | 50Hz / 60Hz |
| Output THDI | < 3% |
| Power factor | -1 ~ 1 |
| AC Output Format | 3L+PE |
| Charge/discharge switching time | <100ms |
| Maximum efficiency | 99% |
| GENERAL SPECIFICATION | |
|---|---|
| Dimension (WPD) | 6058 x 2896 x 2438 mm |
| Weight | 40000 Kg |
| Operating temperature range | -30C ~ +55C |
| Relative Humidity | 5 ~ 95% (No condensation) |
| Maximum working altitude | 300m (> 2000m Derating) |
| Noise | ≤ 70dB |
| Ingress Protection Rating | IP55 |
| Firefighting | Gas fire protection(perflurohexanone) + Combustible gas detection and exhaust + Explosion venting design |
| Heat dissipation method | Liquid Cooling |
| Communication | CAN RS485/TCP |
| STANDART COMPLIANCE | |
|---|---|
| Compliance | UN38.3 / UN3536 / IEC62619 / IEC61000 / IEC62477 - 1 CQC (More available upon request) |
Key features
- Flexible Application.
- Ona-cluster-one.
- Safe & Reliable.
- Flexible Expansion.
- High Integration.
- Smart O&M.
- Energy Saving.
