UPS Details
Description

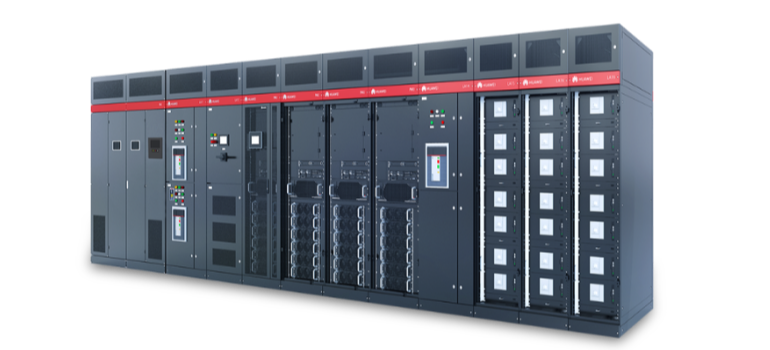

FusionPower6000 integrates full-power links from the medium-voltage transformer to the load feeder, to provide MW-level integrated power supply and distribution for large data centers. The integrated design and high-density components are integrated to reduce the footprint. Prefabrication and de-engineering shorten the deployment duration. iPower intelligent feature ensuring system security.
| Series | FusionPower6000 3.0(1.6 MVA) | FusionPower6000 3.0(2.0 MVA) | FusionPower6000 3.0(2.5 MVA) | FusionPower6000 2.0(1.6 MVA) | FusionPower6000 2.0(2.0 MVA) | FusionPower6000 2.0(2.5 MVA) |
|---|---|---|---|---|---|---|
| Capacity | 1.6 MVA | 2.0 MVA | 2.5 MVA | 1.6 MVA | 2.0 MVA | 2.5 MVA |
| Module Specifications | 100 kW/3U | 100 kW/3U | 100 kW/3U | 100 kW/3U | 100 kW/3U | 100 kW/3U |
| Output Power Factor | 1 | 1 | 1 | 1 | 1 | 1 |
| Efficiency (Double Conversion Mode） | up to 95.6% | up to 95.6% | up to 95.6% | up to 95.5% | up to 95.5% | up to 95.5% |
| Efficiency (S-ECO Mode） | up to 97.8% | up to 97.8% | up to 97.8% | up to 97.5% | up to 97.5% | up to 97.5% |
| S-ECO Mode | Supported | Supported | Supported | Supported | Supported | Supported |
| Dimensions (W×D×H, mm) | 8800×1500×2475 | 9600×1500×2475 | 9600×1500×2475 | 9300×1500×2475 | 12600×1500×3002 | 12600×1500×3002 |
Features & Value
- Prefabricated in factory, TTM reduces 75%+
- Modular component, hot swappable, easy maintenance.
- Full-link convergence, Footprint reduces 40%+
- Power link efficiency is up to 95.6% (97.8% Smart Online Mode).
- Visualized system, easy-to-manage.
- 150+ NTC, temperature monitoring in real time.
- Key components life prediction, on-line switch setting.
- AI Image recognition.
- Good recovery from deep discharge.
