UPS Details
Description

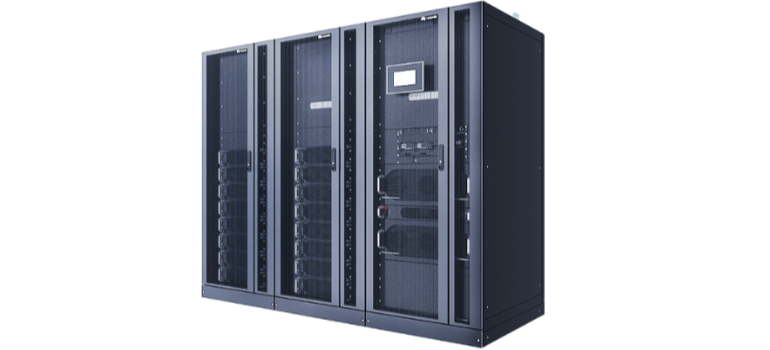

The UPS5000-H(200-1600kVA) is Huawei's high-density and high-efficiency modular UPS designed for medium- and large-sized data centers and critical power supply scenarios. It’s equipped with the advanced 100 kVA/3U hot swappable power modules to achieve 1MVA in one rack, which help save the footprint. The innovation of S-ECO mode can boosts the system efficiency up to remarkable 99.1%.
| Series | UPS5000-H(400V) | UPS5000-H(208V) | UPS5000-H(480V) | UPS5000-H(210V) |
|---|---|---|---|---|
| Capacity | 400/500/600/800/1200/1600 kVA | 300 kVA | 800 kVA | 200 kVA |
| Input Voltage | 380/400/415 V | 200/208/210 V | 480 V | 200/210/220 V |
| Module Specifications | 100 kW/3U | 50 kW/3U | 100 kW/3U | 50 kW/3U |
| Output Power Factor | 1 | 1 | 1 | 1 |
| Efficiency (Double Conversion Mode） | up to 97% | up to 94.5% | up to 97% | up to 94.5% |
| Dimensions (W×D×H, mm) |
400/500/600 kVA：800×1000×2000 800 kVA： 1600×1000×2000 1200 kVA：1600×1000×2200 1600 kVA：2400×1000×2200 |
800×1000×2000 | 1600×1000×2000 | 600×1000×2000 |
Features & Value
- Prefabricated in factory, TTM reduces 75%+
- Modular component, hot swappable, easy maintenance.
- Full-link convergence, Footprint reduces 40%+
- Power link efficiency is up to 95.6% (97.8% Smart Online Mode).
- Visualized system, easy-to-manage.
- 150+ NTC, temperature monitoring in real time.
- Key components life prediction, on-line switch setting.
- AI Image recognition.
- Good recovery from deep discharge.
