UPS Details
Description

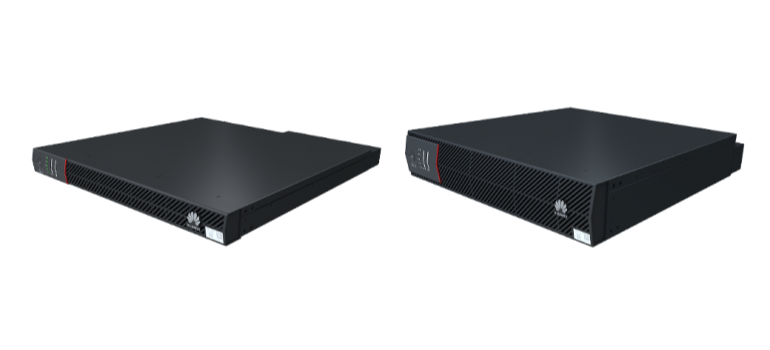

The FusionPower series SmartLi UPS2000-H-(6~10kVA) is an ideal power supply solution for small-sized scenarios based on the online double conversion technology. It can eliminate various power grid problems and support rack or tower installation, with a high efficiency of 96%. Small size, high power density, saving installation space. In addition, no screen design and built-in Wi-Fi for communication with the mobile app, enabling flexible monitoring of the UPS status.
| Series | UPS2000-H-6KRTL-L | UPS2000-H-10KRTL-L |
|---|---|---|
| Product Type | Rack-mounted | Rack-mounted |
| Input Voltage |
L-N: 80~280Vac (176~280Vac for 100% load; 80~176Vac for 40%~100% load) |
L-N: 80~280Vac (176~280Vac for 100% load; 80~176Vac for 40%~100% load) |
| Operating Temperature | 0~50℃, Derating above 40°C | 0~50℃, Derating above 40°C |
| Output Power Factor | 1 | 1 |
| Efficiency (Double Conversion Mode） | up to 96.0% | up to 96.0% |
| Dimensions (W×D×H, mm) | 430×514×43 | 430×514×86 |
Features & Value
- Independent power-on/off button, no screen design, built-in Wi-Fi communication with mobile app, and intelligent features to comprehensively monitor the UPS status and improve intelligent application experience.
- The 6kVA model is 1U high and the 10kVA model is 2U high. High density and save installation space.
- Efficiency up to 96% at normal model, reduce energy consumption, green and energy-saving.
- In ECO mode, the efficiency reaches 99%, which is economical and reliable.
- All-link iPower Monitoring, Changing Passive to AI Predictive Maintenance, Implementing Intelligent Maintenance-Free.
- Optional 4G modules support cloud-based management of multiple sites, reducing O&M costs.
- 5kA lightning protection design, reducing lightningrelated failure rate.
- The input power grid adaptability is optimized. The D.G. capacity meets the requirement of 1:1.35.
