UPS Details
Description

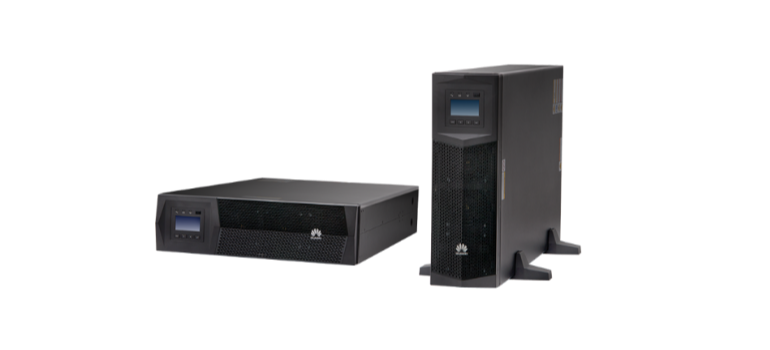

The UPS2000-G is a power supply solution for micro data centers and critical power supply scenarios. It is an online double conversion system that safely delivers uninterrupted, high-quality AC power and can be towered- or rack-mounted.
| Series | UPS2000-G(15 kVA) | UPS2000-G(20 kVA) |
|---|---|---|
| Product Type | Rack-mounted | Rack-mounted |
| Input Voltage |
220/230/240 V (1Ph) 380/400/415 V (3Ph) |
220/230/240 V (1Ph) 380/400/415 V (3Ph) |
| Operating Temperature | 0~40 °C | 0~40 °C |
| Output Power Factor | 0.9 | 0.9 |
| Efficiency (Double Conversion Mode） | up to 95.0% | up to 95.0% |
| Dimensions (W×D×H, mm) | 430×757×130 | 430×757×130 |
Features & Value
- 5kA lightning protection design, reducing lightning-related failure rate.
- Key component failure pre-alarm including fans, batteries, bus capacitors to remind customers to maintain before failure occurs.
- Ultra-wide voltage input range to extend battery service life by effectively reducing times of switchover to battery mode.
- High efficiency at online mode to reduce power loss of UPS and air conditioner: up to 95%.
- Rack/tower convertible, suitable for different installation scenarios.
- High expandability design: up to four units can be connected in parallel to achieve higher capacity or reliability.
- NetEco network manager, supporting centralized management to all the UPS.
