UPS Details
Description

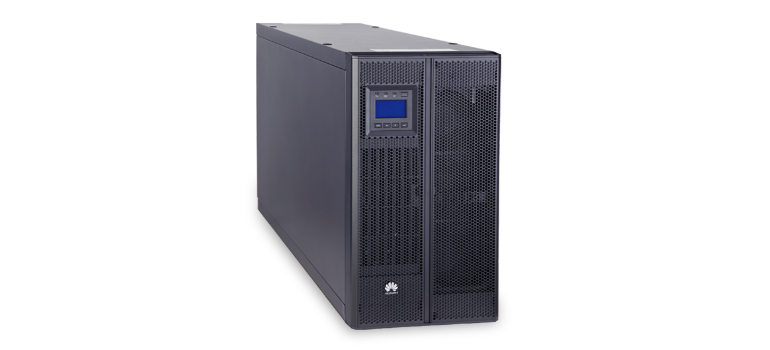

The UPS5000-A (30-600kVA) is a tower UPS for medium-sized and large-sized data centers and critical power supply scenarios. This series is an online double conversion UPS and features high reliability, up to 96% efficiency, and high power density.
| Series | UPS5000-A(30/40 kVA) | UPS5000-A(60 kVA) | UPS5000-A(400 kVA) | UPS5000-A(500 kVA) | UPS5000-A(600 kVA) |
|---|---|---|---|---|---|
| Capacity | 30/40 kVA | 60 kVA | 400 kVA | 500 kVA | 600 kVA |
| Input Voltage | 380/400/415 V | 380/400/415 V | 380/400/415 V | 380/400/415 V | 380/400/415 V |
| Module Specifications | 0~40 °C | 0~40 °C | 0~40 °C | 0~40 °C | 0~40 °C |
| Output Power Factor | 1 | 0.9 | 1 | 1 | 1 |
| Efficiency (Double Conversion Mode） | up to 95.7% | up to 95.7% | up to 95.7% | up to 95.7% | up to 95.7% |
| Dimensions (W×D×H, mm) | 264×800×500 | 440×850×1020 | 1200×850×2000 | 1200×850×2000 | 1400×850×2000 |
Features & Value
- Wide input voltage range to minimize battery use: 485-305 V for 100% load; 305-138 Vac for 100%-40% load (derating linearly).
- Better load adaptability: high output power factor up to 1 and no derating for capacitive or inductive devices with a PF>0.5.
- High efficiency of up to 96%, reducing power consumption effectively.
- High power density of up to 300kVA per rack, 50% footprint saving.
- Flexible battery configuration: 30-44 batteries per string allow customers to get the faulty battery out instead of replacing it.
